Best Practice for Pneumatic Systems

· air preparation unit

Wanting to expand the execution of the entire pneumatic structure, limit upkeep/edge time by widening the presence of pneumatic parts, or essentially control the cost to run the blower? Flawless, dry, controllable compacted air is essential for outright pneumatic system efficiency. To extend execution and expand the presence of the parts achieving the work in a pneumatic system, compacted air preparation at the characteristic of direction is a need. Fundamental air preparation unit stuff, or 'Air Prep', will for the most part contain a channel, regulator, and maybe a lubricator in a series.

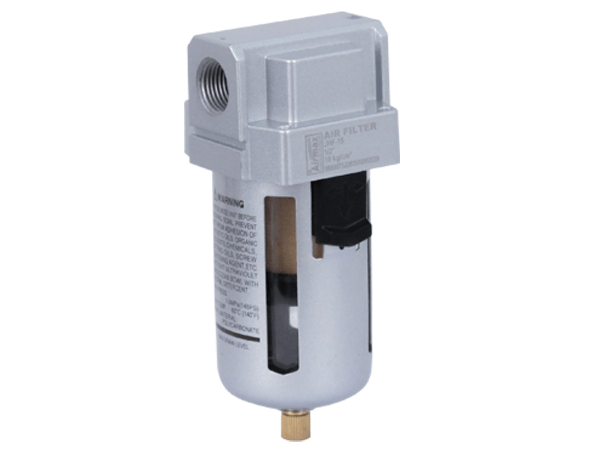

Air Preparation: Channel

The twofold layer part discards the necessity for various diverts in series, giving colossal stream, irrelevant strain hardship, and 3x the presence of a standard single-layer part.

The channel should get the stock air first, then, at that point, will remove most soddenness and air-line debasements normally down to 5 microns and can get just 0.3 microns depending upon the sort of channel picked.

Pressed air channels require safety measure upkeep to ensure ideal capability and convincing filtering. A compacted air channel ought to be superseded generally every 4-6 months, dependent upon use and the condition of the oncoming air.

The channel will routinely be clear through the bowl or sight glass for favorable self-noticing. Clamminess isolated from the compacted air will accumulate in the channel bowl. As a part of the air preparation typical, this bowl ought to be checked and drained discontinuously, either genuinely or through an optional auto-exhausting feature. Make sure to fittingly course the drainage including tubing for genuine expulsion (and to avoid a disaster area).

Make sure to in like manner screen the condition of the bowl. Real mischief or breaking could happen due to a problematic fluid in the upstream air. In these models, a metal bowl is the most sensible plan. Silly conditions, for instance, high moisture and speedy temperature changes could mean additional clamminess extraction is expected as a part of the air preparation process.

Air Preparation: Regulator

Changes in supply pressure change for absolutely controlled downstream strain. Streamlined embedded measure standard.

After the channel, a strain diminishing valve, or regulator, will take that unblemished, dry air and give a method for controlling the pressure downstream. Working with a genuinely controlled regulator could give off an impression of being a piece peculiar. "Closing" the valve by turning it clockwise will truly pack the coordinating springs inside the valve and license more imperative strain to pass downstream.

While a regulator will inherently impact the stream at the same time, best air preparation practice coordinates that a regulator should be used only to oversee downstream pressure. For on/off handiness, or to control the movement of the air in your structure, an essential on/off valve and a metering valve (or stream control) are proposed.

Channel Regulator Combo

Joins pervasive twofold layer filtering with definite downstream strain control in one united module when space is at a greater expense than ordinary.

A channel/regulator combo unit gives a unitized channel/regulator structure as a single unit for space speculation assets without compromising control or isolation.

Lubricator

Using a lubricator depends upon what your system needs downstream. Add a lubricator to the pneumatic structure to outfit downstream parts with a steady load of oil scarcely oil to the pressed air stream. Lubricators use an adjustable visual pointer to measure how much oil is downstream and have an oil vault bowl that can be ostensibly seen to ensure consistent storage.

Throughout the most recent 10 years, most downstream parts, for instance, valves and chambers have advanced to use oil as opposed to a lubricator, thusly taking out the necessity for consistent oiling as an element of the air preparation plan.
